MFC : 색상선택 예제-메뉴,컨텍스트메뉴,시스템메뉴,툴바

Fundamental Notes/MFC

MFC : 색상선택 예제-메뉴,컨텍스트메뉴,시스템메뉴,툴바

콩콩댕 2009. 11. 10. 10:49

ChildView.cpp

// ChildView.cpp : implementation of the CChildView class
//

#include "stdafx.h"
#include "Simple2.h"
#include "ChildView.h"
#include "MainFrm.h"

#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif

/////////////////////////////////////////////////////////////////////////////
// CChildView

CChildView::CChildView()
{
	m_color = RGB(255, 0, 0);
}

CChildView::~CChildView()
{
}

BEGIN_MESSAGE_MAP(CChildView,CWnd )
	//{{AFX_MSG_MAP(CChildView)
	ON_WM_PAINT()
	ON_COMMAND(ID_COLOR_RED, OnColorRed)
	ON_COMMAND(ID_COLOR_GREEN, OnColorGreen)
	ON_COMMAND(ID_COLOR_BLUE, OnColorBlue)
	ON_UPDATE_COMMAND_UI(ID_COLOR_RED, OnUpdateColorRed)
	ON_UPDATE_COMMAND_UI(ID_COLOR_GREEN, OnUpdateColorGreen)
	ON_UPDATE_COMMAND_UI(ID_COLOR_BLUE, OnUpdateColorBlue)
	ON_WM_CONTEXTMENU()
	ON_WM_MOUSEMOVE()
	//}}AFX_MSG_MAP
END_MESSAGE_MAP()

/////////////////////////////////////////////////////////////////////////////
// CChildView message handlers

BOOL CChildView::PreCreateWindow(CREATESTRUCT& cs)
{
	if (!CWnd::PreCreateWindow(cs))
		return FALSE;

cs.dwExStyle |= WS_EX_CLIENTEDGE;
	cs.style &= ~WS_BORDER;
	cs.lpszClass = AfxRegisterWndClass(CS_HREDRAW|CS_VREDRAW|CS_DBLCLKS,
		::LoadCursor(NULL, IDC_ARROW), HBRUSH(COLOR_WINDOW+1), NULL);

return TRUE;
}

void CChildView::OnPaint()
{
	CPaintDC dc(this); // device context for painting

	// TODO: Add your message handler code here
    CRect rect;
    GetClientRect(&rect);
    dc.SelectStockObject(NULL_PEN);
    CBrush brush(m_color);
    dc.SelectObject(&brush);
    dc.Rectangle(&rect);
	// Do not call CWnd::OnPaint() for painting messages
}

void CChildView::OnColorRed()
{
	// TODO: Add your command handler code here
	m_color = RGB(255, 0, 0);
	Invalidate();
}

void CChildView::OnColorGreen()
{
	// TODO: Add your command handler code here
	m_color = RGB(0, 255, 0);
	Invalidate();
}

void CChildView::OnColorBlue()
{
	// TODO: Add your command handler code here
	m_color = RGB(0, 0, 255);
	Invalidate();
}

void CChildView::OnUpdateColorRed(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here
	pCmdUI->SetCheck(m_color == RGB(255, 0, 0));
//	pCmdUI->Enable(false);
}

void CChildView::OnUpdateColorGreen(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here
	pCmdUI->SetCheck(m_color == RGB(0, 255, 0));
	//pCmdUI->Enable(false);
}

void CChildView::OnUpdateColorBlue(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here
	pCmdUI->SetCheck(m_color == RGB(0, 0, 255));
//	pCmdUI->Enable(false);
}

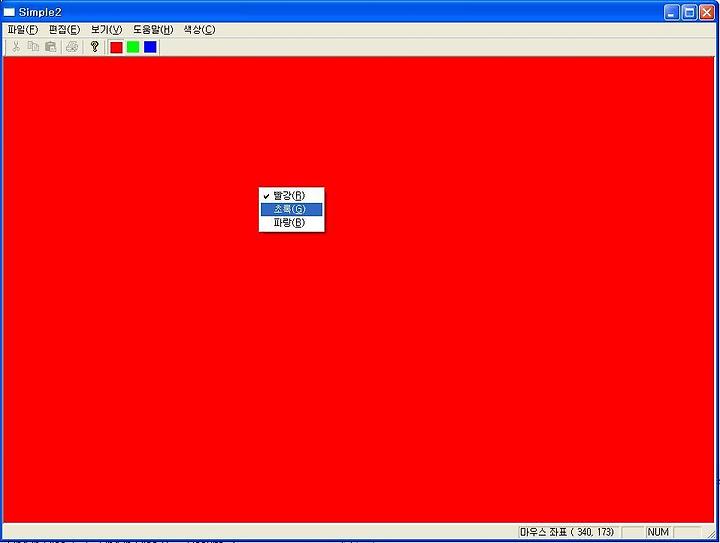

void CChildView::OnContextMenu(CWnd* pWnd, CPoint point)
{
	// TODO: Add your message handler code here
	CMenu menu;
	menu.LoadMenu(IDR_MAINFRAME);
	CMenu* pMenu = menu.GetSubMenu(4);

pMenu->TrackPopupMenu(
		TPM_LEFTALIGN|TPM_RIGHTBUTTON,
		point.x, point.y, AfxGetMainWnd());
}

void CChildView::OnMouseMove(UINT nFlags, CPoint point)
{
	CString str;
	str.Format("마우스 좌표 (%4d,%4d)", point.x, point.y);
	CMainFrame *ptr = (CMainFrame *)AfxGetMainWnd();
	ptr->SetPaneText(1, str);

CWnd ::OnMouseMove(nFlags, point);
}

MainFrm.cpp

// MainFrm.cpp : implementation of the CMainFrame class
//

#include "stdafx.h"
#include "Simple2.h"

#include "MainFrm.h"

#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif

/////////////////////////////////////////////////////////////////////////////
// CMainFrame

IMPLEMENT_DYNAMIC(CMainFrame, CFrameWnd)

BEGIN_MESSAGE_MAP(CMainFrame, CFrameWnd)
	//{{AFX_MSG_MAP(CMainFrame)
	ON_WM_CREATE()
	ON_WM_SETFOCUS()
	ON_WM_SYSCOMMAND()
	//}}AFX_MSG_MAP
	ON_UPDATE_COMMAND_UI(ID_INDICATOR_POS, OnUpdatePos)
END_MESSAGE_MAP()

static UINT indicators[] =
{
	ID_SEPARATOR,           // status line indicator
	ID_INDICATOR_POS,
	ID_INDICATOR_CAPS,
	ID_INDICATOR_NUM,
	ID_INDICATOR_SCRL,
};

/////////////////////////////////////////////////////////////////////////////
// CMainFrame construction/destruction

CMainFrame::CMainFrame()
{
	// TODO: add member initialization code here

}

CMainFrame::~CMainFrame()
{
}

int CMainFrame::OnCreate(LPCREATESTRUCT lpCreateStruct)
{
	if (CFrameWnd::OnCreate(lpCreateStruct) == -1)
		return -1;
	// create a view to occupy the client area of the frame
	if (!m_wndView.Create(NULL, NULL, AFX_WS_DEFAULT_VIEW,
		CRect(0, 0, 0, 0), this, AFX_IDW_PANE_FIRST, NULL))
	{
		TRACE0("Failed to create view window\n");
		return -1;
	}

	if (!m_wndToolBar.CreateEx(this, TBSTYLE_FLAT, WS_CHILD | WS_VISIBLE | CBRS_TOP
		| CBRS_GRIPPER | CBRS_TOOLTIPS | CBRS_FLYBY | CBRS_SIZE_DYNAMIC) ||
		!m_wndToolBar.LoadToolBar(IDR_MAINFRAME))
	{
		TRACE0("Failed to create toolbar\n");
		return -1;      // fail to create
	}

if (!m_wndStatusBar.Create(this) ||
		!m_wndStatusBar.SetIndicators(indicators,
		  sizeof(indicators)/sizeof(UINT)))
	{
		TRACE0("Failed to create status bar\n");
		return -1;      // fail to create
	}

// TODO: Delete these three lines if you don't want the toolbar to
	//  be dockable
	m_wndToolBar.EnableDocking(CBRS_ALIGN_ANY);
	EnableDocking(CBRS_ALIGN_ANY);
	DockControlBar(&m_wndToolBar);

CMenu* pSysMenu = GetSystemMenu(FALSE);
	pSysMenu->AppendMenu(MF_SEPARATOR);
	pSysMenu->AppendMenu(MF_STRING, 16, "이 프로그램은...");

return 0;
}

BOOL CMainFrame::PreCreateWindow(CREATESTRUCT& cs)
{
	if( !CFrameWnd::PreCreateWindow(cs) )
		return FALSE;
	// TODO: Modify the Window class or styles here by modifying
	//  the CREATESTRUCT cs

cs.dwExStyle &= ~WS_EX_CLIENTEDGE;
	cs.lpszClass = AfxRegisterWndClass(0);
	return TRUE;
}

/////////////////////////////////////////////////////////////////////////////
// CMainFrame diagnostics

#ifdef _DEBUG
void CMainFrame::AssertValid() const
{
	CFrameWnd::AssertValid();
}

void CMainFrame::Dump(CDumpContext& dc) const
{
	CFrameWnd::Dump(dc);
}

#endif //_DEBUG

/////////////////////////////////////////////////////////////////////////////
// CMainFrame message handlers
void CMainFrame::OnSetFocus(CWnd* pOldWnd)
{
	// forward focus to the view window
	m_wndView.SetFocus();
}

BOOL CMainFrame::OnCmdMsg(UINT nID, int nCode, void* pExtra, AFX_CMDHANDLERINFO* pHandlerInfo)
{
	// let the view have first crack at the command
	if (m_wndView.OnCmdMsg(nID, nCode, pExtra, pHandlerInfo))
		return TRUE;

// otherwise, do default handling
	return CFrameWnd::OnCmdMsg(nID, nCode, pExtra, pHandlerInfo);
}

void CMainFrame::OnSysCommand(UINT nID, LPARAM lParam)
{
	if((nID & 0xFFF0) == 16){
		MessageBox("시스템 메뉴를 연습합니다.", "");
		return;
	}

	CFrameWnd::OnSysCommand(nID, lParam);
}

void CMainFrame::SetPaneText(int index, CString &str)
{
	m_wndStatusBar.SetPaneText(index, str);
}

void CMainFrame::OnUpdatePos(CCmdUI *pCmdUI)
{
	pCmdUI->Enable();
}

Simple2.cpp

// Simple2.cpp : Defines the class behaviors for the application.
//

#include "stdafx.h"
#include "Simple2.h"

#include "MainFrm.h"

#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif

/////////////////////////////////////////////////////////////////////////////
// CSimple2App

BEGIN_MESSAGE_MAP(CSimple2App, CWinApp)
	//{{AFX_MSG_MAP(CSimple2App)
	ON_COMMAND(ID_APP_ABOUT, OnAppAbout)
		// NOTE - the ClassWizard will add and remove mapping macros here.
		//    DO NOT EDIT what you see in these blocks of generated code!
	//}}AFX_MSG_MAP
END_MESSAGE_MAP()

/////////////////////////////////////////////////////////////////////////////
// CSimple2App construction

CSimple2App::CSimple2App()
{
	// TODO: add construction code here,
	// Place all significant initialization in InitInstance
}

/////////////////////////////////////////////////////////////////////////////
// The one and only CSimple2App object

CSimple2App theApp;

/////////////////////////////////////////////////////////////////////////////
// CSimple2App initialization

BOOL CSimple2App::InitInstance()
{
	// Standard initialization
	// If you are not using these features and wish to reduce the size
	//  of your final executable, you should remove from the following
	//  the specific initialization routines you do not need.

#ifdef _AFXDLL
	Enable3dControls();			// Call this when using MFC in a shared DLL
#else
	Enable3dControlsStatic();	// Call this when linking to MFC statically
#endif

// Change the registry key under which our settings are stored.
	// TODO: You should modify this string to be something appropriate
	// such as the name of your company or organization.
	SetRegistryKey(_T("Local AppWizard-Generated Applications"));

// To create the main window, this code creates a new frame window
	// object and then sets it as the application's main window object.

CMainFrame* pFrame = new CMainFrame;
	m_pMainWnd = pFrame;

// create and load the frame with its resources

pFrame->LoadFrame(IDR_MAINFRAME,
		WS_OVERLAPPEDWINDOW | FWS_ADDTOTITLE, NULL,
		NULL);

// The one and only window has been initialized, so show and update it.
	pFrame->ShowWindow(SW_SHOW);
	pFrame->UpdateWindow();

return TRUE;
}

/////////////////////////////////////////////////////////////////////////////
// CSimple2App message handlers

/////////////////////////////////////////////////////////////////////////////
// CAboutDlg dialog used for App About

class CAboutDlg : public CDialog
{
public:
	CAboutDlg();

// Dialog Data
	//{{AFX_DATA(CAboutDlg)
	enum { IDD = IDD_ABOUTBOX };
	//}}AFX_DATA

// ClassWizard generated virtual function overrides
	//{{AFX_VIRTUAL(CAboutDlg)
	protected:
	virtual void DoDataExchange(CDataExchange* pDX);    // DDX/DDV support
	//}}AFX_VIRTUAL

// Implementation
protected:
	//{{AFX_MSG(CAboutDlg)
	afx_msg void OnUpdateColorBlue(CCmdUI* pCmdUI);
	afx_msg void OnUpdateColorGreen(CCmdUI* pCmdUI);
	afx_msg void OnUpdateColorRed(CCmdUI* pCmdUI);
	//}}AFX_MSG
	DECLARE_MESSAGE_MAP()
};

CAboutDlg::CAboutDlg() : CDialog(CAboutDlg::IDD)
{
	//{{AFX_DATA_INIT(CAboutDlg)
	//}}AFX_DATA_INIT
}

void CAboutDlg::DoDataExchange(CDataExchange* pDX)
{
	CDialog::DoDataExchange(pDX);
	//{{AFX_DATA_MAP(CAboutDlg)
	//}}AFX_DATA_MAP
}

BEGIN_MESSAGE_MAP(CAboutDlg, CDialog)
	//{{AFX_MSG_MAP(CAboutDlg)
	ON_UPDATE_COMMAND_UI(ID_COLOR_BLUE, OnUpdateColorBlue)
	ON_UPDATE_COMMAND_UI(ID_COLOR_GREEN, OnUpdateColorGreen)
	ON_UPDATE_COMMAND_UI(ID_COLOR_RED, OnUpdateColorRed)
	//}}AFX_MSG_MAP
END_MESSAGE_MAP()

// App command to run the dialog
void CSimple2App::OnAppAbout()
{
	CAboutDlg aboutDlg;
	aboutDlg.DoModal();
}

/////////////////////////////////////////////////////////////////////////////
// CSimple2App message handlers

void CAboutDlg::OnUpdateColorBlue(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here

}

void CAboutDlg::OnUpdateColorGreen(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here

}

void CAboutDlg::OnUpdateColorRed(CCmdUI* pCmdUI)
{
	// TODO: Add your command update UI handler code here

}

ChildView.h

// ChildView.h : interface of the CChildView class
//
/////////////////////////////////////////////////////////////////////////////

#if !defined(AFX_CHILDVIEW_H__1229B611_B458_4418_AA4B_BC22DFD61789__INCLUDED_)
#define AFX_CHILDVIEW_H__1229B611_B458_4418_AA4B_BC22DFD61789__INCLUDED_

#if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000

/////////////////////////////////////////////////////////////////////////////
// CChildView window

class CChildView : public CWnd
{
// Construction
public:
	CChildView();

// Attributes
public:
	COLORREF m_color;

// Operations
public:

// Overrides
	// ClassWizard generated virtual function overrides
	//{{AFX_VIRTUAL(CChildView)
	protected:
	virtual BOOL PreCreateWindow(CREATESTRUCT& cs);
	//}}AFX_VIRTUAL

// Implementation
public:
	virtual ~CChildView();

// Generated message map functions
protected:
	//{{AFX_MSG(CChildView)
	afx_msg void OnPaint();
	afx_msg void OnColorRed();
	afx_msg void OnColorGreen();
	afx_msg void OnColorBlue();
	afx_msg void OnUpdateColorRed(CCmdUI* pCmdUI);
	afx_msg void OnUpdateColorGreen(CCmdUI* pCmdUI);
	afx_msg void OnUpdateColorBlue(CCmdUI* pCmdUI);
	afx_msg void OnContextMenu(CWnd* pWnd, CPoint point);
	afx_msg void OnMouseMove(UINT nFlags, CPoint point);
	//}}AFX_MSG
	DECLARE_MESSAGE_MAP()
};

/////////////////////////////////////////////////////////////////////////////

//{{AFX_INSERT_LOCATION}}
// Microsoft Visual C++ will insert additional declarations immediately before the previous line.

#endif // !defined(AFX_CHILDVIEW_H__1229B611_B458_4418_AA4B_BC22DFD61789__INCLUDED_)

MainFrm.h

// MainFrm.h : interface of the CMainFrame class
//
/////////////////////////////////////////////////////////////////////////////

#if !defined(AFX_MAINFRM_H__078BF45D_B6A4_4E2B_A602_82C04C6456FD__INCLUDED_)
#define AFX_MAINFRM_H__078BF45D_B6A4_4E2B_A602_82C04C6456FD__INCLUDED_

#if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000

#include "ChildView.h"

class CMainFrame : public CFrameWnd
{

public:
	CMainFrame();
protected:
	DECLARE_DYNAMIC(CMainFrame)

// Attributes
public:

// Operations
public:

// Overrides
	// ClassWizard generated virtual function overrides
	//{{AFX_VIRTUAL(CMainFrame)
	virtual BOOL PreCreateWindow(CREATESTRUCT& cs);
	virtual BOOL OnCmdMsg(UINT nID, int nCode, void* pExtra, AFX_CMDHANDLERINFO* pHandlerInfo);
	//}}AFX_VIRTUAL

// Implementation
public:
	void OnUpdatePos(CCmdUI *pCmdUI);
	void SetPaneText(int index, CString& str);
	virtual ~CMainFrame();
#ifdef _DEBUG
	virtual void AssertValid() const;
	virtual void Dump(CDumpContext& dc) const;
#endif

protected:  // control bar embedded members
	CStatusBar  m_wndStatusBar;
	CToolBar    m_wndToolBar;
	CChildView    m_wndView;

// Generated message map functions
protected:
	//{{AFX_MSG(CMainFrame)
	afx_msg int OnCreate(LPCREATESTRUCT lpCreateStruct);
	afx_msg void OnSetFocus(CWnd *pOldWnd);
	afx_msg void OnSysCommand(UINT nID, LPARAM lParam);
	//}}AFX_MSG
	DECLARE_MESSAGE_MAP()
};

/////////////////////////////////////////////////////////////////////////////

//{{AFX_INSERT_LOCATION}}
// Microsoft Visual C++ will insert additional declarations immediately before the previous line.

#endif // !defined(AFX_MAINFRM_H__078BF45D_B6A4_4E2B_A602_82C04C6456FD__INCLUDED_)

Simple2.h

// Simple2.h : main header file for the SIMPLE2 application
//

#if !defined(AFX_SIMPLE2_H__C61ACF14_5F3F_4C67_AF0D_BC3CCAF2D055__INCLUDED_)
#define AFX_SIMPLE2_H__C61ACF14_5F3F_4C67_AF0D_BC3CCAF2D055__INCLUDED_

#if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000

#ifndef __AFXWIN_H__
	#error include 'stdafx.h' before including this file for PCH
#endif

#include "resource.h"       // main symbols

/////////////////////////////////////////////////////////////////////////////
// CSimple2App:
// See Simple2.cpp for the implementation of this class
//

class CSimple2App : public CWinApp
{
public:
	CSimple2App();

// Overrides
	// ClassWizard generated virtual function overrides
	//{{AFX_VIRTUAL(CSimple2App)
	public:
	virtual BOOL InitInstance();
	//}}AFX_VIRTUAL

// Implementation

public:
	//{{AFX_MSG(CSimple2App)
	afx_msg void OnAppAbout();
		// NOTE - the ClassWizard will add and remove member functions here.
		//    DO NOT EDIT what you see in these blocks of generated code !
	//}}AFX_MSG
	DECLARE_MESSAGE_MAP()
};

/////////////////////////////////////////////////////////////////////////////

//{{AFX_INSERT_LOCATION}}
// Microsoft Visual C++ will insert additional declarations immediately before the previous line.

#endif // !defined(AFX_SIMPLE2_H__C61ACF14_5F3F_4C67_AF0D_BC3CCAF2D055__INCLUDED_)

저작자표시 비영리 변경금지 (새창열림)
